200bar Ceramic Piezoresistive Pressure Sensor With PCB Moudle Anti Corrosion

Name: 200bar Ceramic Piezoresistive Pressure Sensor With PCB Moudle Anti Corrosion
Brand: TAIMI
Price: 1 USD

Quality 200bar Ceramic Piezoresistive Pressure Sensor With PCB Moudle Anti Corrosion wholesale

Brand Name : TAIMI

Model Number : TM-NT18 Ceramic pressure sensor+pcb 200 bar

Certification : ISO,RoHS CE

Place of Origin : CHINA

MOQ : 1000PCS

Price : negotiable

Payment Terms : T/T

Supply Ability : 100000/month

Delivery Time : 10~20days

Packaging Details : safe packaging

Type : Ceramic pressure transducer+pcb

Application Humidification : Air Conditioning and Refrigerator resistance pressure sensor

Output : 4-20mA(2 Wires)/0-5V/0-10V

Material : Ceramic Al2O3 96%

Power supply : 2 ... 30 V/DC

Dimensions : 18 Capacitive pressure sensor ceramic

Accuracy : 0.5%FS

Medium : Corrosive Liquid

Operating temperatures : - 40 ~+ 135°C

Pressure range : 5~600Bar Capacitive pressure sensor ceramic

Application : A/C, temperature switch,Car pressure sensor

Wight : 5g

Sensitivity : 2.0~4.8mV/V

Bridge resistance : 11K±20%

humidity range : <95%RH

full scale output : 3mV/V,type

application : process control,environment control,chemical industry,etc

Warranty : 2 years

Color : White & Blue

Deliver : 20days

Contact Now

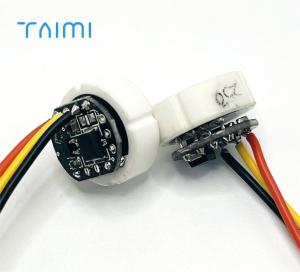

200bar Anti-corrosion ceramic piezoresistive pressure sensor with PCB moudle

The sensors are designed in such a way so that temperature changes and overloading do not
cause any loss in reliability. The use of ceramic ensures high linearity across the entire range
of measurement and reduces effects of hysteresis to a minimum.
Additionally, PPS101 are thermal compensated by PTC resistors. The offset can be adjusted on
customer specification.

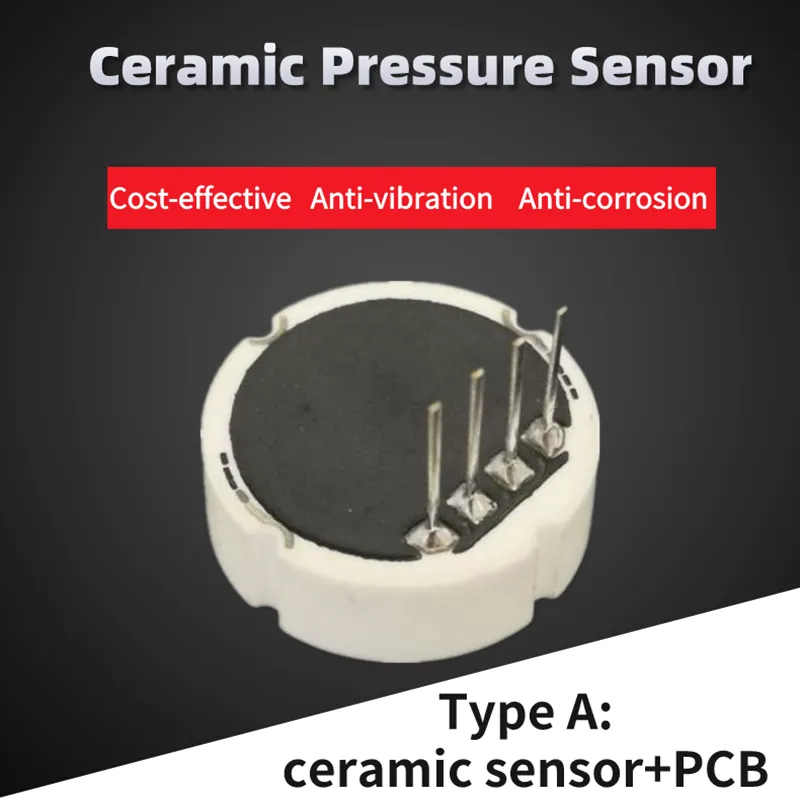

200bar Ceramic Piezoresistive Pressure Sensor With PCB Moudle Anti Corrosion

Application: Pressure and/or temperature switch + transmitter for usage in process automation.

• Pressure Measurement Type: Relative (Absolute as an option)

• Pressure Measurement Ranges:

• 0~1 bar,0~10 bar, 0~25 bar, 0~100 bar. 0~250 bar, 0~400 bar, 0~600 bar

• Vacuum: -1...0 bar, -1...+1 bar, -1…+10bar

• Pressure Measurement Performance(As per EN62828-2:2018):

• Hysteresis: Max. ±0.2% of FS

• Non-repeatability: Max. ±0.2% of FS BFSK

• Non-linearity: Max. ±0.2% FS

• Accuracy over 1 year operation(Incl. thermal drift): Max. ±0.25% FS/year

• Zero Output Thermal Error: Max. ± 0.2%FS

• Span Output Thermal Error: Max. ± 0.2%FS

• Pressure Media: Hydraulic(Coolant, Hydraulic Fluids, Oil, Water) / Pneumatics (Compressed Gas)

• Overpressure safety: min. 2.5x

• Burst pressure safety: min. 4x

• Vacuum safety: -1 bar

• Service Life: 100 million switching cycles

• Operating Temperature: -40...+125 oC (Including Process Connection)

• Storage Temperature: -40...+135 oC

Temperature Compensation: Yes(-10℃ to 70℃, Ideally: -20℃ to 85℃)

• Temperature Measurement Performance:

• Temperature error: ±0.5℃

• Temperature stability error: Max. ±0.3℃/year

• Max. overall diameter: <=18mm(with reference to process connection)

• Shock: 500g based on DIN EN 60068-2-27 (1ms).

• Vibration: 25g based on DIN EN 60068-2-6 (10~2000Hz).

• Supply Voltage: 2 to 35Vdc

• Output Electrical Signal: mV(or most cost effective option)

• Response Time (0 to 100%): <=1 ms

• Compliance Type: RoHS

VIII. Use considerations:

1. the core is installed, nylon washer should be installed on the lead surface of the core to make the core force uniform and avoid zero point instability. Before 2. the welding lead, please preheat the core body, increase the solderability of the solder joint, avoid the solder joint heating for a long time to reduce the adhesion of the pad. For welding, use no more than 60 W of tip soldering iron. 3. the black film part do not touch, scratch the black film will damage the internal circuit, damage the sensor
